Fully Automatic Full Height Turnstile Anti Tailgating With Brushless Motor

Shenzhen CXT Technology & Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Fully Automatic Full Height Turnstile Anti Tailgating With Brushless Motor

Place of Origin : shenzhen

Brand Name : cxt

Certification : Single label product appearance patent

MOQ : 1

Price : 90~3500USD

Packaging Details : Cartons and wooden boxes

Delivery Time : 20 working days

Payment Terms : Public Account

Supply Ability : 500ps

Temperature : -15 To 60 Degrees

Access Control : RFID,fingerprint,barcode,esd,token

Head Thickness : 1.5mm (can be customized)

Passing Speed : 30-40 people/min

Operating Humidity : ≤95% no condensation

Material : stainless steels 304

Trade Term : EXW, FOB, CIF

Rated Power : 50W

Mcbf : 5,000,000 Cycles

Pass Speed : 25-30 person/nin

Width : 600mm

Contact Now

Fully automatic anti-tailgating brushless motor anti-collision Full Height Turnstile CXT-Z1702A-120

Model CXT-Z1702A-120
Specifications 1500*1500*2300mm
Pole length 570mm
Process

Produced by bending, cutting, welding, polishing, grinding and other processes

Material

National standard 304 stainless steel (201 stainless steel, iron paint can be customized)

Main functions and features of full-height revolving door turnstile


Main functions and features of 120-degree full-height turnstile

Fully Automatic Full Height Turnstile Anti Tailgating With Brushless Motor

Fully Automatic Full Height Turnstile Anti Tailgating With Brushless Motor
1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;
2) It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;
3) It has an automatic reset function. When the gate lever is unlocked, it rotates 120 degrees/90 degrees, which means it is automatically reset (locked). Or if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and automatically close (lock), and the delay is adjustable at 2S, 5S, 10S, and 60S.
4) Anti-collision function, when no gate opening signal is received, the fence bar will automatically lock;
5) Anti-tailgating function, when one person passes, it will turn 120 degrees/90 degrees and automatically lock;
6) Automatic normally open function when power is off to meet the requirements of fire management;
7) It can be connected with a variety of card reading devices and receive relay switch signals to work;
8) One-way and two-way passage function, which can control the entry and exit of personnel in one direction or two directions;
9) Adopting the optical working principle, there is no delay requirement for the input control signal, and it is absolutely avoided that several people pass through with one card;
10) The external button can realize the left and right normally open function;
11) The external button can realize the uninterrupted normally open function;
12) Remote control and management can be realized directly through the management computer (need to be customized);
13) The control panel can be connected to the counting function to record the number of people present and realize the forward addition and reverse subtraction functions (need to be customized).


120 degree full height turnstile standard technical parameters

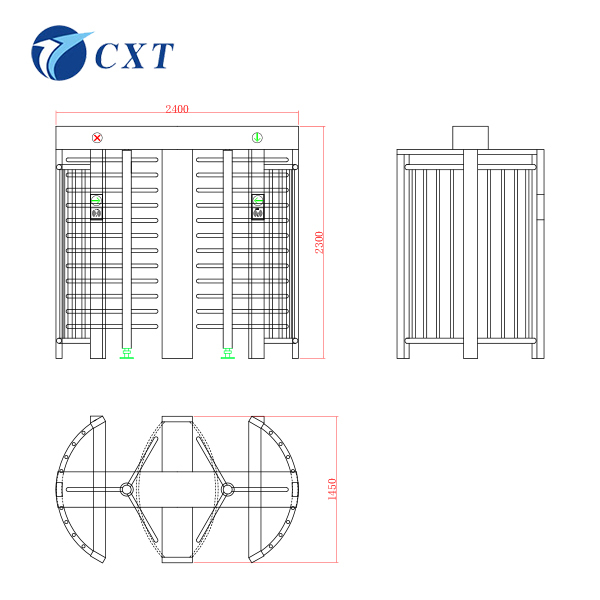

Chassis size: 120 degrees: 2400*1450*2300mm
The outer frame can be customized according to the door opening conditions on site.
Channel width: 600-800mm
Single machine weight: about 200KG
Chassis material: National standard 304 stainless steel frame structure
Processing technology: bending, cutting, welding, polishing, grinding and other processes
Working environment: indoor and outdoor
Power supply voltage: AC220±10% V, 50HZ
Drive motor: DC motor (50W/12V)
Motor speed: 1600 rpm
Input control interface: relay switch signal
Normal service life: 6 million times
Passing speed: 20-25 people/minute
Time required to enter the passing state after power-on: 3 seconds
Automatic reset time after a fault: 10 seconds
Temperature: -40℃—80℃
Humidity: 5%--95%

Fully Automatic Full Height Turnstile Anti Tailgating With Brushless Motor
